butex可以说是与brpc架构紧密结合

简介

butex是brpc协程（bthread）间的一种同步机制，与mutex/pthread关系类似。linux中的mutex是由futex来实现的，butex也是参考futex的设计的。

例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
class Mutex {
public:
    typedef bthread_mutex_t* native_handler_type;
    Mutex() {
        int ec = bthread_mutex_init(&_mutex, NULL);
        if (ec != 0) {
            throw std::system_error(std::error_code(ec, std::system_category()), "Mutex constructor failed");
        }
    }
    ~Mutex() { CHECK_EQ(0, bthread_mutex_destroy(&_mutex)); }
    native_handler_type native_handler() { return &_mutex; }
    void lock() {
        int ec = bthread_mutex_lock(&_mutex);
        if (ec != 0) {
            throw std::system_error(std::error_code(ec, std::system_category()), "Mutex lock failed");
        }
    }
    void unlock() { bthread_mutex_unlock(&_mutex); }
    bool try_lock() { return !bthread_mutex_trylock(&_mutex); }
    // TODO(chenzhangyi01): Complement interfaces for C++11
private:
    DISALLOW_COPY_AND_ASSIGN(Mutex);
    bthread_mutex_t _mutex;
};


// bthread_mutex_t define
typedef struct {
    unsigned* butex;
    bthread_contention_site_t csite;
} bthread_mutex_t;
  1. 创建Mutex对象时，会调用bthread_mutex_init(&_mutex, NULL)函数来初始化_mutex，与pthread中的pthread_mutex_init一样
  2. Mutex::lock时调用bthread_mutex_lock，Mutex::unlock则调用bthrad_mutex_unlock，基本与pthread的mutex的lock与unlock方法一致

深入细节

bthread_mutex_init

bthread_mutex_init -> bthread_create_checked -> butex_create() -> butil::get_object<Butex>，最终返回的是 &Butex->value，即value成员变量的地址，需要注意这里的value是一个atomic<int>对象，后续会有相关的内存可见性和读写的操作。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
int bthread_mutex_init(bthread_mutex_t* __restrict m,
                       const bthread_mutexattr_t* __restrict) {
    bthread::make_contention_site_invalid(&m->csite);
    m->butex = bthread::butex_create_checked<unsigned>();
    if (!m->butex) {
        return ENOMEM;
    }
    *m->butex = 0;
    return 0;
}


// Check width of user type before casting.
template <typename T> T* butex_create_checked() {
    BAIDU_CASSERT(sizeof(T) == sizeof(int), sizeof_T_must_equal_int);
    return static_cast<T*>(butex_create());
}

// Create a butex which is a futex-like 32-bit primitive for synchronizing
// bthreads/pthreads.
// Returns a pointer to 32-bit data, NULL on failure.
// NOTE: all butexes are private(not inter-process).
void* butex_create() {
    // 从objectpool中拿一个Butex对象
    Butex* b = butil::get_object<Butex>();
    if (b) {
        return &b->value;
    }
    return NULL;
}


struct BAIDU_CACHELINE_ALIGNMENT Butex {
    Butex() {}
    ~Butex() {}

    butil::atomic<int> value;
    ButexWaiterList waiters;
    internal::FastPthreadMutex waiter_lock;
};

bthread_mutex_lock/bthread_mutex_unlock

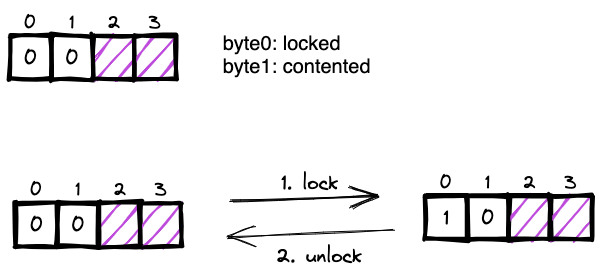

首先需要注意到MutexInternal这个结构是butil::atomic<int> Butex::value的拆分，所以这里split->locked其实也是改变butex->value.

没有锁竞争的情况：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
int bthread_mutex_lock(bthread_mutex_t* m) {
    bthread::MutexInternal* split = (bthread::MutexInternal*)m->butex;
    if (!split->locked.exchange(1, butil::memory_order_acquire)) {
        //在没有锁的情况下，locked初始值为0，所以在这里就直接返回了
        return 0;
    }
    // Don't sample when contention profiler is off.
    return bthread::mutex_lock_contended(m);
}

// Implement bthread_mutex_t related functions
struct MutexInternal {
    butil::static_atomic<unsigned char> locked;
    butil::static_atomic<unsigned char> contended;
    unsigned short padding;
};

const MutexInternal MUTEX_CONTENDED_RAW = {{1},{1},0};
const MutexInternal MUTEX_LOCKED_RAW = {{1},{0},0};
// Define as macros rather than constants which can't be put in read-only
// section and affected by initialization-order fiasco.
#define BTHREAD_MUTEX_CONTENDED (*(const unsigned*)&bthread::MUTEX_CONTENDED_RAW)
#define BTHREAD_MUTEX_LOCKED (*(const unsigned*)&bthread::MUTEX_LOCKED_RAW)

下面是bthread_mutex_unlock的代码。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
int bthread_mutex_unlock(bthread_mutex_t* m) {
    butil::atomic<unsigned>* whole = (butil::atomic<unsigned>*)m->butex;
    bthread_contention_site_t saved_csite = {0, 0};
    if (bthread::is_contention_site_valid(m->csite)) {
        saved_csite = m->csite;
        bthread::make_contention_site_invalid(&m->csite);
    }
    const unsigned prev = whole->exchange(0, butil::memory_order_release);
    // CAUTION: the mutex may be destroyed, check comments before butex_create
    // 没有竞争的情况下，这里就直接返回了
    if (prev == BTHREAD_MUTEX_LOCKED) {
        return 0;
    }
    // Wakeup one waiter
    if (!bthread::is_contention_site_valid(saved_csite)) {
        bthread::butex_wake(whole);
        return 0;
    }
    const int64_t unlock_start_ns = butil::cpuwide_time_ns();
    bthread::butex_wake(whole);
    const int64_t unlock_end_ns = butil::cpuwide_time_ns();
    saved_csite.duration_ns += unlock_end_ns - unlock_start_ns;
    bthread::submit_contention(saved_csite, unlock_end_ns);
    return 0;
}

在没有锁的情况下，lock操作将locked这个字节变为1，unlock的情况下，若将整个Butex::value exchange为0，且prev值=BTHREAD_MUTEX_LOCKED [{1},{0},0]，则说明当前只有一把锁，可以直接解锁了

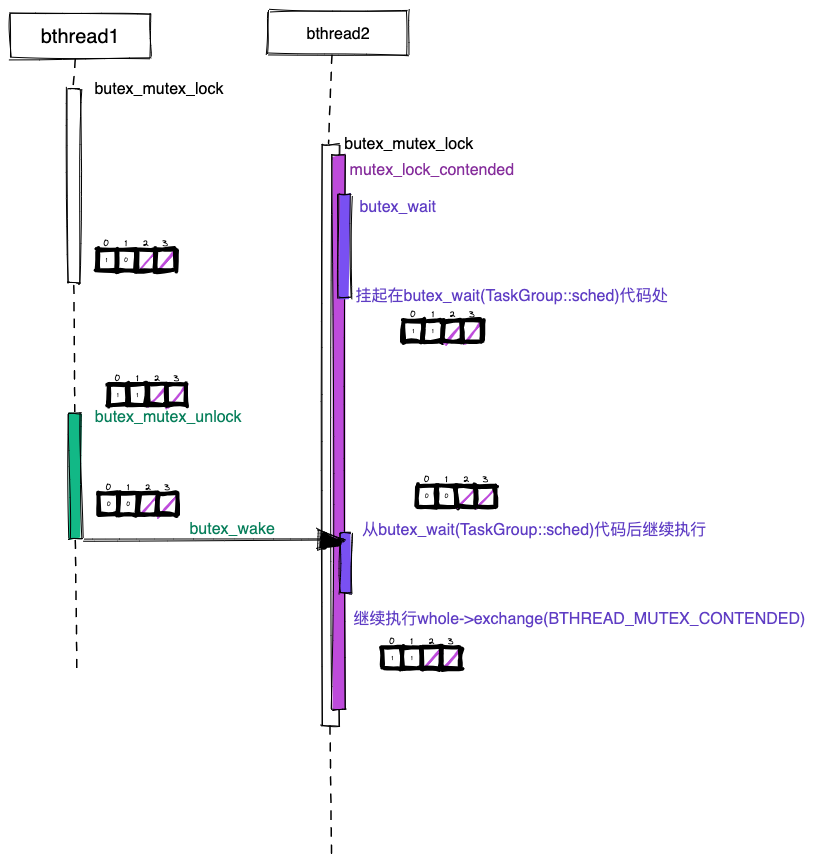

锁竞争的情况

bthread_mutex_lock在有锁的情况下，会执行mutex_lock_contended的逻辑，从而调用到butex_wait->TaskGroup::sched->wait_for_butex，最终当前bthread被挂起，并创建ButexBthreadWaiter塞到Butex的waiter队列里面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
inline int mutex_lock_contended(bthread_mutex_t* m) {
    butil::atomic<unsigned>* whole = (butil::atomic<unsigned>*)m->butex;
    // 由于当前已经有锁，那么锁住后
    // 第一个调用whole->exchange(BTHREAD_MUTEX_CONTENDED)将返回BTHREAD_MUTEX_LOCKED
    // 后续调用的，将返回BTHREAD_MUTEX_CONTENDED
    while (whole->exchange(BTHREAD_MUTEX_CONTENDED) & BTHREAD_MUTEX_LOCKED) {
        if (bthread::butex_wait(whole, BTHREAD_MUTEX_CONTENDED, NULL) < 0 &&
            errno != EWOULDBLOCK && errno != EINTR/*note*/) {
            // a mutex lock should ignore interrruptions in general since
            // user code is unlikely to check the return value.
            return errno;
        }
    }
    return 0;
}

int butex_wait(void* arg, int expected_value, const timespec* abstime) {
    Butex* b = container_of(static_cast<butil::atomic<int>*>(arg), Butex, value);
    if (b->value.load(butil::memory_order_relaxed) != expected_value) {
        errno = EWOULDBLOCK;
        // Sometimes we may take actions immediately after unmatched butex,
        // this fence makes sure that we see changes before changing butex.
        butil::atomic_thread_fence(butil::memory_order_acquire);
        return -1;
    }
    TaskGroup* g = tls_task_group;
    ButexBthreadWaiter bbw;
    // tid is 0 iff the thread is non-bthread
    bbw.tid = g->current_tid();
    bbw.container.store(NULL, butil::memory_order_relaxed);
    bbw.task_meta = g->current_task();
    bbw.sleep_id = 0;
    bbw.waiter_state = WAITER_STATE_READY;
    bbw.expected_value = expected_value;
    bbw.initial_butex = b;
    bbw.control = g->control();


    // release fence matches with acquire fence in interrupt_and_consume_waiters
    // in task_group.cpp to guarantee visibility of `interrupted'.
    bbw.task_meta->current_waiter.store(&bbw, butil::memory_order_release);
    g->set_remained(wait_for_butex, &bbw);
    // 调度其他bthread执行
    TaskGroup::sched(&g);

    // erase_from_butex_and_wakeup (called by TimerThread) is possibly still
    // running and using bbw. The chance is small, just spin until it's done.
    BT_LOOP_WHEN(unsleep_if_necessary(&bbw, get_global_timer_thread()) < 0,
                 30/*nops before sched_yield*/);

    // If current_waiter is NULL, TaskGroup::interrupt() is running and using bbw.
    // Spin until current_waiter != NULL.
    BT_LOOP_WHEN(bbw.task_meta->current_waiter.exchange(
                     NULL, butil::memory_order_acquire) == NULL,
                 30/*nops before sched_yield*/);

    bool is_interrupted = false;
    if (bbw.task_meta->interrupted) {
        // Race with set and may consume multiple interruptions, which are OK.
        bbw.task_meta->interrupted = false;
        is_interrupted = true;
    }
    // If timed out as well as value unmatched, return ETIMEDOUT.
    if (WAITER_STATE_TIMEDOUT == bbw.waiter_state) {
        errno = ETIMEDOUT;
        return -1;
    } else if (WAITER_STATE_UNMATCHEDVALUE == bbw.waiter_state) {
        errno = EWOULDBLOCK;
        return -1;
    } else if (is_interrupted) {
        errno = EINTR;
        return -1;
    }
    return 0;
}

// 将bw塞到当前butex的waiter队列中
static void wait_for_butex(void* arg) {
    ButexBthreadWaiter* const bw = static_cast<ButexBthreadWaiter*>(arg);
    Butex* const b = bw->initial_butex;
    // 1: waiter with timeout should have waiter_state == WAITER_STATE_READY
    //    before they're queued, otherwise the waiter is already timedout
    //    and removed by TimerThread, in which case we should stop queueing.
    //
    // Visibility of waiter_state:
    //    [bthread]                         [TimerThread]
    //    waiter_state = TIMED
    //    tt_lock { add task }
    //                                      tt_lock { get task }
    //                                      waiter_lock { waiter_state=TIMEDOUT }
    //    waiter_lock { use waiter_state }
    // tt_lock represents TimerThread::_mutex. Visibility of waiter_state is
    // sequenced by two locks, both threads are guaranteed to see the correct
    // value.
    {
        BAIDU_SCOPED_LOCK(b->waiter_lock);
        if (b->value.load(butil::memory_order_relaxed) != bw->expected_value) {
            bw->waiter_state = WAITER_STATE_UNMATCHEDVALUE;
        } else if (bw->waiter_state == WAITER_STATE_READY/*1*/ &&
                   !bw->task_meta->interrupted) {
            b->waiters.Append(bw);
            bw->container.store(b, butil::memory_order_relaxed);
            return;
        }
    }

    // b->container is NULL which makes erase_from_butex_and_wakeup() and
    // TaskGroup::interrupt() no-op, there's no race between following code and
    // the two functions. The on-stack ButexBthreadWaiter is safe to use and
    // bw->waiter_state will not change again.
    unsleep_if_necessary(bw, get_global_timer_thread());
    tls_task_group->ready_to_run(bw->tid);
    // FIXME: jump back to original thread is buggy.

    // // Value unmatched or waiter is already woken up by TimerThread, jump
    // // back to original bthread.
    // TaskGroup* g = tls_task_group;
    // ReadyToRunArgs args = { g->current_tid(), false };
    // g->set_remained(TaskGroup::ready_to_run_in_worker, &args);
    // // 2: Don't run remained because we're already in a remained function
    // //    otherwise stack may overflow.
    // TaskGroup::sched_to(&g, bw->tid, false/*2*/);
}

bthread_mutex_unlock在有锁的情况又是如何的呢？
调用butex_wake->remove waiter from butex->waiters，然后将waiter->tid塞到调度队列中，此时whole的状态为[{0},{0},0]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
int bthread_mutex_unlock(bthread_mutex_t* m) {
    butil::atomic<unsigned>* whole = (butil::atomic<unsigned>*)m->butex;
    bthread_contention_site_t saved_csite = {0, 0};
    if (bthread::is_contention_site_valid(m->csite)) {
        saved_csite = m->csite;
        bthread::make_contention_site_invalid(&m->csite);
    }
    const unsigned prev = whole->exchange(0, butil::memory_order_release);
    // CAUTION: the mutex may be destroyed, check comments before butex_create
    if (prev == BTHREAD_MUTEX_LOCKED) {
        return 0;
    }
    // Wakeup one waiter
    if (!bthread::is_contention_site_valid(saved_csite)) {
        bthread::butex_wake(whole);
        return 0;
    }
    const int64_t unlock_start_ns = butil::cpuwide_time_ns();
    bthread::butex_wake(whole);
    const int64_t unlock_end_ns = butil::cpuwide_time_ns();
    saved_csite.duration_ns += unlock_end_ns - unlock_start_ns;
    bthread::submit_contention(saved_csite, unlock_end_ns);
    return 0;
}

int butex_wake(void* arg) {
    Butex* b = container_of(static_cast<butil::atomic<int>*>(arg), Butex, value);
    ButexWaiter* front = NULL;
    {
        BAIDU_SCOPED_LOCK(b->waiter_lock);
        if (b->waiters.empty()) {
            return 0;
        }
        front = b->waiters.head()->value();
        front->RemoveFromList();
        front->container.store(NULL, butil::memory_order_relaxed);
    }
    if (front->tid == 0) {
        wakeup_pthread(static_cast<ButexPthreadWaiter*>(front));
        return 1;
    }
    ButexBthreadWaiter* bbw = static_cast<ButexBthreadWaiter*>(front);
    unsleep_if_necessary(bbw, get_global_timer_thread());
    TaskGroup* g = tls_task_group;
    if (g) {
        TaskGroup::exchange(&g, bbw->tid);
    } else {
        bbw->control->choose_one_group()->ready_to_run_remote(bbw->tid);
    }
    return 1;
}

原来被挂起的bthread被重新调度后，此时butex_wait返回0，重新执行这个while循环，但此时whole=[{0},{0},0]，因此可以跳出这个循环，返回0，本bthread将获取到锁，锁的状态重新变为whole=[{1},{1},0]。当bthread再继续调用bthread_mutex_unlock后，那么锁的状态将变为0，但因为锁之前的状态为whole=[{1},{1},0]，因此会再调用一次butex_wake。

1
2
3
4
5
6
7
8
9
10
11
12
inline int mutex_lock_contended(bthread_mutex_t* m) {
    butil::atomic<unsigned>* whole = (butil::atomic<unsigned>*)m->butex;
    while (whole->exchange(BTHREAD_MUTEX_CONTENDED) & BTHREAD_MUTEX_LOCKED) {
        if (bthread::butex_wait(whole, BTHREAD_MUTEX_CONTENDED, NULL) < 0 &&
            errno != EWOULDBLOCK && errno != EINTR/*note*/) {
            // a mutex lock should ignore interrruptions in general since
            // user code is unlikely to check the return value.
            return errno;
        }
    }
    return 0;
}
